1996 - 2002 AC Compressor Skylark Cavalier Malibu Achieva Alero Grand Am Sunfire A/C KIT - US AC Parts | Auto AC Compressor | AC Hose | Condenser | Drier

Description

Item Number: AP20455KCore Charge: $0.00Manufacturer: AirpartsDescription: OEM # 1135202, 1135274, 1135314, 1135437, 1135439, 89018822, 89018887

/ New AC Compressor

Shipping Weight: 17.0 lbs

2 Years Warranty

New GM V5 Air Conditioning A/C Compressor Complete With 5 Groove Clutch Assembly For Buick Skylark, Chevy Cavalier, Malibu, Oldsmobile Achieva, Alero, Pontiac Grand Am, And Sunfire.

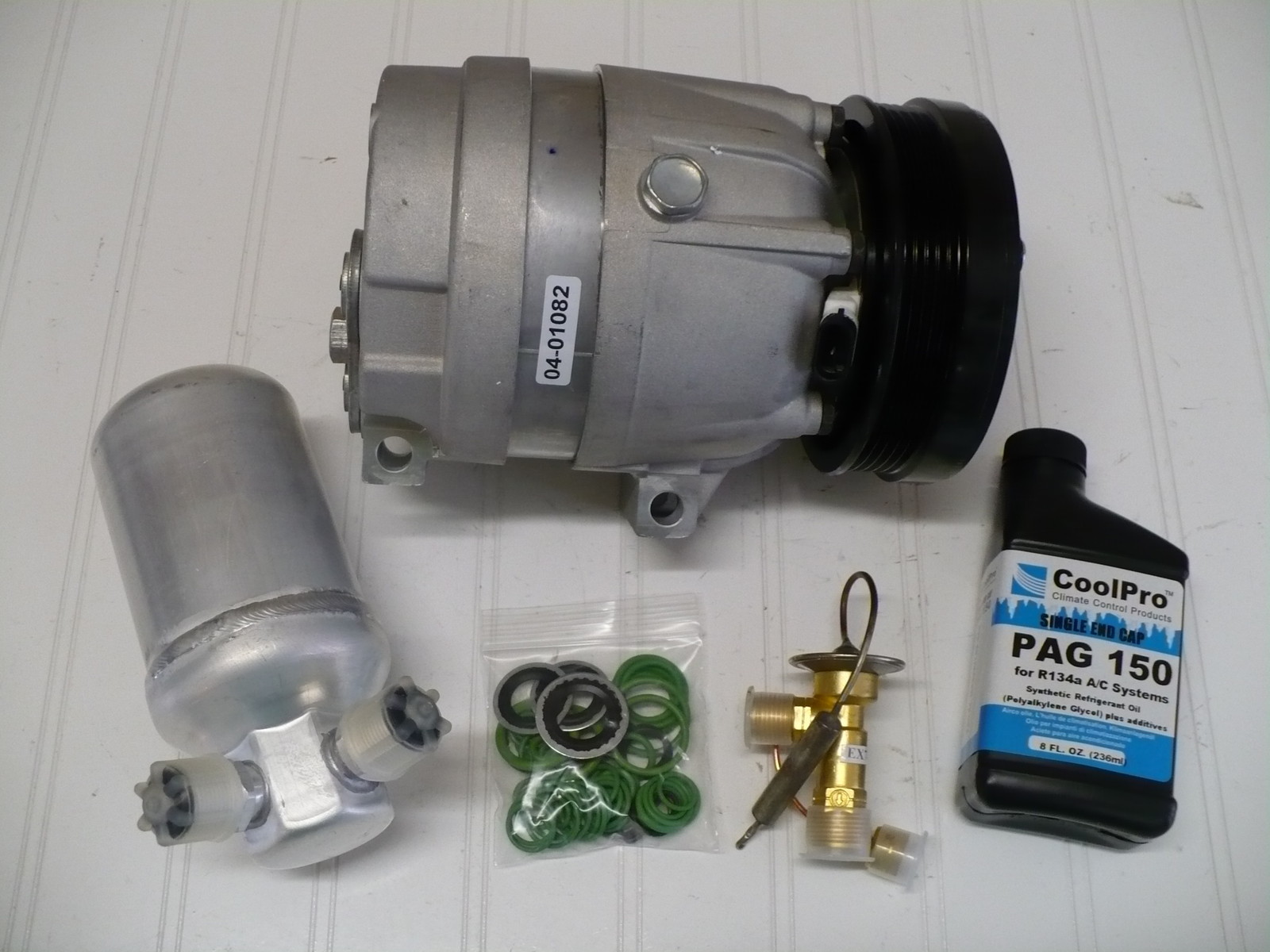

Included in this package is:

Brand new A/C compressor with clutch

Brand new accumulator/drier

Brand new Expansion Valve

O-ring kit –

8-oz bottle of PAG oil

Application Notes

New GM V5 Air Conditioning Compressor Complete With 5 Groove Clutch Assembly Measuring 5.0″ Diameter, 2.0″ Gauge Line – Direct Mount (4 Boss) – 5/8 X 5/8 Hose Manifold – 8mm Pin Coil @ 3 O’Clock – No Switch Ports

The GM V5 is a 5 cylinder variable displacement compressor.

General Motors V5 and V7 compressors have a control valve. A control valve measures refrigerant and adjusts the angle of the swash plate, to which the pistons are connected, and controls the stroke of the pistons. If high pressure is measured, the control valve adjusts to shorten the stroke of the pistons, so less pressure is produced. If, upon installation of a new compressor, there seems to be no ‘pumping’ from the compressor, it may be necessary to remove the control valve and blow off excess oil. The control valve may be sensing no pressure and presuming the system is empty of refrigerant.

The Accumulator or Filter Drier should always be replaced when the Air Conditioning System is opened.

ACDelco: 15-20338, 15-20455, 15-20457, 15-21565, 15-21215, 15-21719

CarQuest / NAPA: 251296, 254412

Delphi: CS0055

Denso: 471-9001

Discount AC Parts: 60-00977RC, 60-00977NA, 60-00977NC

Four Seasons: 57991, 58991, 67289

General Motors: 1135202, 1135274, 1135314, 1135437, 1135439, 89018822, 89018887

Omega: 20-10685-R, 20-10689

Proliance: 2647, 2647N

Visteon: 000013, 16991

Years	Make	Model	Engine Type	Liter
1998	Buick	Skylark	L4	2.4
1996 – 1997	Buick	Skylark Custom	L4	2.4
1996 – 1997	Buick	Skylark Limited	L4	2.4
1999 – 2002	Chevrolet	Cavalier	L4	2.4
1996 – 1998	Chevrolet	Cavalier LS	L4	2.4
1996 – 1998	Chevrolet	Cavalier Z24	L4	2.4
1997 – 1999	Chevrolet	Malibu	L4	2.4
1996	Oldsmobile	Achieva	L4	2.4
1998	Oldsmobile	Achieva	L4	2.4
1996 – 1997	Oldsmobile	Achieva SC	L4	2.4
1996 – 1997	Oldsmobile	Achieva SL	L4	2.4
1999 – 2001	Oldsmobile	Alero	L4	2.4
1999 – 2001	Pontiac	Grand Am	L4	2.4
1996 – 1998	Pontiac	Grand Am GT	L4	2.4
1996 – 1998	Pontiac	Grand Am SE	L4	2.4
1998 – 2002	Pontiac	Sunfire	L4	2.4
1996 – 1997	Pontiac	Sunfire GT	L4	2.4
1996 – 1997	Pontiac	Sunfire SE
