Description
Item Number: AP20452Core Charge: $0.00Manufacturer: AirpartsDescription: OEM # 1135238, 1135281, 1135433
/ New AC Compressor
Shipping Weight: 15.0 lbs
1 Year Warranty

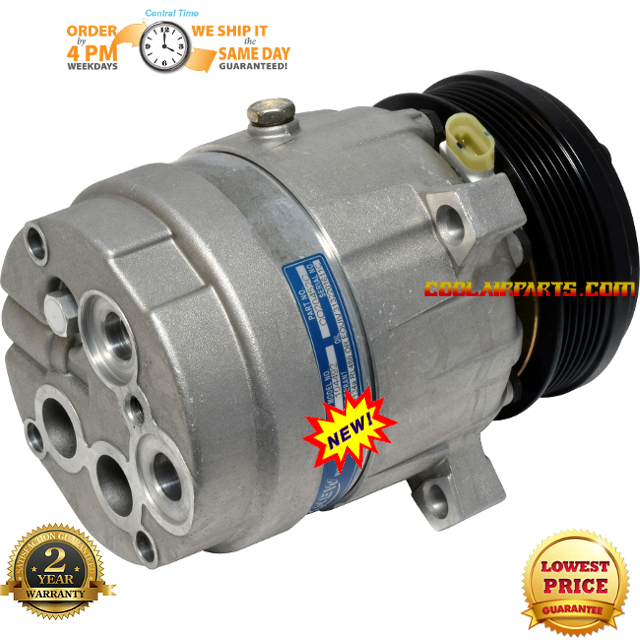

New GM V5 Air Conditioning A/C Compressor Complete With 6 Groove Clutch Assembly For 1996 – 2004 Buick Regal, Chevy Impala, Lumina, Monte Carlo, Oldsmobile Intrigue, And Pontiac Grand Prix With V6 3.8 Engine.
SKU: 100058
New GM V5 Air Conditioning Compressor With 6 Groove Clutch Measuring 4.7″ Diameter, 1.15″ Gauge Line – 3 Mounting Ears – Missing 4 O’clock Ear – Ears Not Threaded – 5/8 X 5/8 Hose Manifold – 8mm Pin Coil @ 2 O’Clock – No Switch Ports – 10mm Rear Holes
General Motors V5 and V7 compressors have a control valve. A control valve measures refrigerant and adjusts the angle of the swash plate, to which the pistons are connected, and controls the stroke of the pistons. If high pressure is measured, the control valve adjusts to shorten the stroke of the pistons, so less pressure is produced. If, upon installation of a new compressor, there seems to be no ‘pumping’ from the compressor, it may be necessary to remove the control valve and blow off excess oil. The control valve may be sensing no pressure and presuming the system is empty of refrigerant.
The Accumulator or Filter Drier should always be replaced when the Air Conditioning System is opened. The Orifice Tube, if equipped, should always be replaced and the Expansion Valve, if equipped, should at least be inspected for proper operation if not replaced.
204-748
ACDelco: 15-20345, 15-20452
CarQuest / NAPA: 251294
Compressor Works: 620452
Delphi: CS0061, 52381969
Denso: 471-9143
Four Seasons: 57987, 58987
Frigette: 204-748, 204-923
General Motors: 1135238, 1135281, 1135433
Omega: 20-10690, 20-10690-R
Proliance: 2643, 2643N
Spectra Premium: 0657987, 0658987
Visteon: 000660, 000014, 16504
Applications
| Years | Make | Model | Engine Type | Liter | Fuel |
|---|---|---|---|---|---|
| 1999 – 2000 | Buick | Regal | V6 | 3.8 | GAS |
| 1999 – 2000 | Buick | Regal | V6 | 3.8 | GAS |
| 1996 | Buick | Regal Custom | V6 | 3.8 | GAS |
| 1996 | Buick | Regal Gran Sport | V6 | 3.8 | GAS |
| 1997 – 1998 | Buick | Regal GS | V6 | 3.8 | GAS |
| 1997 – 1998 | Buick | Regal GS | V6 | 3.8 | GAS |
| 2001 – 2004 | Buick | Regal GS | V6 | 3.8 | GAS |
| 2001 – 2004 | Buick | Regal GS | V6 | 3.8 | GAS |
| 1996 | Buick | Regal Limited | V6 | 3.8 | GAS |
| 1997 – 1998 | Buick | Regal LS | V6 | 3.8 | GAS |
| 1997 – 1998 | Buick | Regal LS | V6 | 3.8 | GAS |
| 2001 – 2004 | Buick | Regal LS | V6 | 3.8 | GAS |
| 2001 – 2004 | Buick | Regal LS | V6 | 3.8 | GAS |
| 2000 – 2003 | Chevrolet | Impala | V6 | 3.8 | GAS |
| 2000 – 2003 | Chevrolet | Impala LS | V6 | 3.8 | GAS |
| 1999 | Chevrolet | Lumina | V6 | 3.8 | GAS |
| 1998 | Chevrolet | Lumina LTZ | V6 | 3.8 | GAS |
| 1999 | Chevrolet | Monte Carlo | V6 | 3.8 | GAS |
| 2000 – 2003 | Chevrolet | Monte Carlo SS | V6 | 3.8 | GAS |
| 1998 | Chevrolet | Monte Carlo Z34 | V6 | 3.8 | GAS |
| 1998 – 1999 | Oldsmobile | Intrigue | V6 | 3.8 | GAS |
| 1998 – 2003 | Pontiac | Grand Prix | V6 | 3.8 | GAS |
| 1997 – 1998 | Pontiac | Grand Prix GT | V6 | 3.8 | GAS |
| 1997 – 1998 | Pontiac | Grand Prix GT | V6 | 3.8 | GAS |
| 1997 – 1998 | Pontiac | Grand Prix GTP | V6 | 3.8 | GAS |
| 1997 – 1998 | Pontiac | Grand Prix GTP | V6 | 3.8 | GAS |
| 1997 | Pontiac | Grand Prix SE | V6 | 3.8 | GAS |
| 1997 | Pontiac | Grand Prix SE | V6 | 3.8 | GAS |
Reviews
There are no reviews yet.
