Description
Item Number: AP20145Core Charge: $0.00Manufacturer: AirpartsDescription: OEM # 19169359
/ New AC Compressor
Shipping Weight: 15.0 lbs
2 Years Warranty
New GM HT6 Replacement Air Conditioning A/C Compressor Complete With 6 Groove Clutch Assembly For Chevy Blazer, Van, Kodiak, S10 Pickup, GMC Van, Jimmy, Sonoma, Topkick, Isuzu Hombre, And Oldsmobile Bravada.

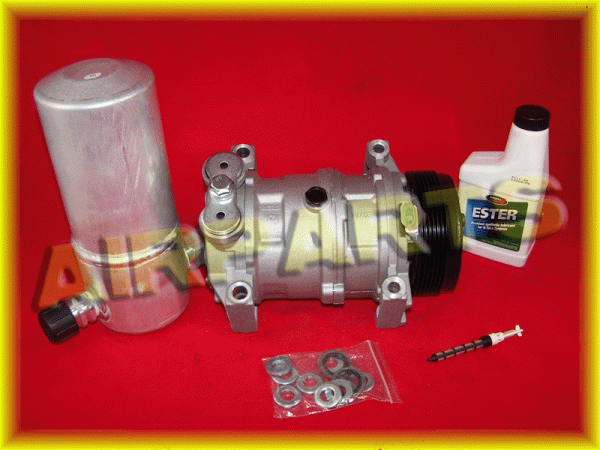

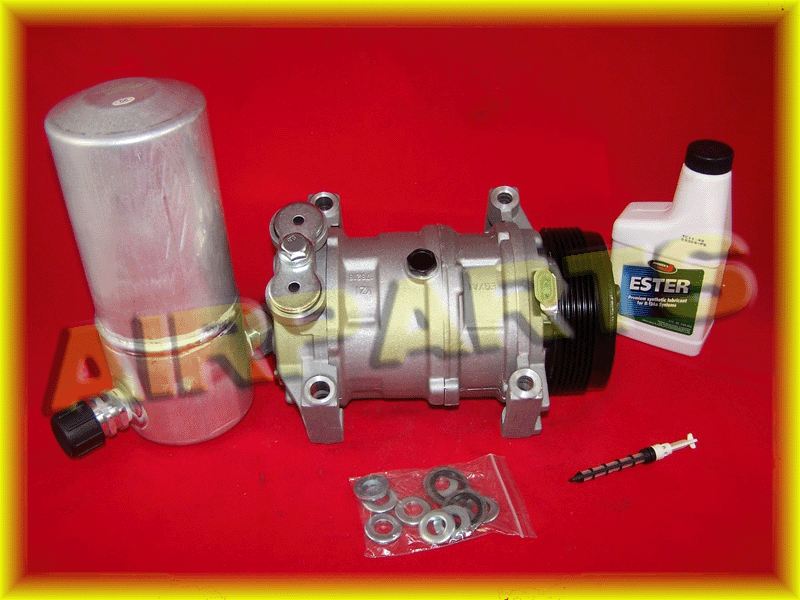

Included in this package is:
- Brand new A/C compressor with clutch
- Brand new receiver drier
- Brand new expansion valve
- O-ring kit –
- 8-oz bottle of PAG- oil
This Is An Aftermarket Air Conditioning Compressor Manufactured By Sanden – Behr To Replace The General Motors HT6 – It Has A 6 Groove Clutch Assembly With A 4.20″ Diameter Pulley, .60″ Gauge Line, And 8mm Pin Coil @ 11 O’Clock
General Motors HT6 compressor – Superior Nippondenso-based internal design, with 5 pistons operating in 10 cylinders for quieter, more efficient operation. This A/C pump has internal locating pins connecting each case segment, eliminating the problem of compressor ‘twist’ and leak problems.
This unit comes with a full 8 ounce charge of premium PAG 46 oil.
Compressor is located directly on top of the engine. On Chevy and GMC Vans, it can be accessed by removing the doghouse. There is an high pressure switch in the rear of the original compressor, held in with a small internal snap ring. That switch will need to be carefully removed from the OE unit and transferred to this unit.
ACDelco: 15-20145, 15-20420, 15-21586, 15-21729
CarQuest / NAPA: 251281, 274083
Delphi: CS0121
Denso: 471-9167
Everco: A91281
Four Seasons: 57947, 58947, 88947
General Motors: 1136521, 1136558, 1136641, 19169359, 89018950, 19188297
Isuzu: 8-01135-621-0, 8-01136-521-0
Proliance: 2645, 2645N
Visteon: 000016, 010341
Applications
| Years | Make | Model | Engine Type | Liter | Fuel |
|---|---|---|---|---|---|
| 1998 – 2005 | Chevrolet | Blazer | V6 | 4.3 | GAS |
| 1999 – 2001 | Chevrolet | Blazer Trailblazer | V6 | 4.3 | GAS |
| 1999 – 2002 | Chevrolet | Express 1500 | V8 | 5.0 | GAS |
| 1999 – 2002 | Chevrolet | Express 1500 | V6 | 4.3 | GAS |
| 1999 – 2002 | Chevrolet | Express 1500 | V8 | 5.7 | GAS |
| 1999 – 2002 | Chevrolet | Express 2500 | V6 | 4.3 | GAS |
| 1999 – 2002 | Chevrolet | Express 2500 | V8 | 5.0 | GAS |
| 1999 – 2002 | Chevrolet | Express 2500 | V8 | 5.7 | GAS |
| 1999 – 2002 | Chevrolet | Express 2500 | V8 | 6.5 | DIESEL |
| 2001 | Chevrolet | Express 2500 | V8 | 5.7 | CNG |
| 2002 | Chevrolet | Express 2500 | V8 | 5.7 | BI-FUEL |
| 1999 – 2000 | Chevrolet | Express 3500 | V8 | 7.4 | GAS |
| 1999 – 2002 | Chevrolet | Express 3500 | V8 | 5.7 | GAS |
| 1999 – 2002 | Chevrolet | Express 3500 | V8 | 6.5 | DIESEL |
| 2001 | Chevrolet | Express 3500 | V8 | 5.7 | CNG |
| 2001 – 2002 | Chevrolet | Express 3500 | V8 | 8.1 | GAS |
| 2002 | Chevrolet | Express 3500 | V8 | 5.7 | BI-FUEL |
| 1996 – 1997 | Chevrolet | G10 Van | V6 | 4.3 | GAS |
| 1996 – 1997 | Chevrolet | G10 Van | V8 | 5.7 | GAS |
| 1996 – 1997 | Chevrolet | G10 Van | V8 | 5.0 | GAS |
| 1996 – 1997 | Chevrolet | G10 Van Express | V8 | 5.7 | GAS |
| 1996 – 1997 | Chevrolet | G10 Van Express | V8 | 5.0 | GAS |
| 1996 – 1997 | Chevrolet | G10 Van Express | V6 | 4.3 | GAS |
| 1998 | Chevrolet | G1500 Van | V6 | 4.3 | GAS |
| 1998 | Chevrolet | G1500 Van | V8 | 5.0 | GAS |
| 1998 | Chevrolet | G1500 Van | V8 | 5.7 | GAS |
| 1996 – 1997 | Chevrolet | G20 Van | V8 | 5.0 | GAS |
| 1996 – 1997 | Chevrolet | G20 Van | V8 | 6.5 | DIESEL |
| 1996 – 1997 | Chevrolet | G20 Van | V8 | 5.7 | GAS |
| 1996 – 1997 | Chevrolet | G20 Van | V6 | 4.3 | GAS |
| 1996 – 1997 | Chevrolet | G20 Van Express | V8 | 5.0 | GAS |
| 1996 – 1997 | Chevrolet | G20 Van Express | V6 | 4.3 | GAS |
| 1996 – 1997 | Chevrolet | G20 Van Express | V8 | 5.7 | GAS |
| 1997 | Chevrolet | G20 Van Express | V8 | 6.5 | DIESEL |
| 1998 | Chevrolet | G2500 Van | V8 | 5.7 | GAS |
| 1998 | Chevrolet | G2500 Van | V8 | 6.5 | DIESEL |
| 1998 | Chevrolet | G2500 Van | V8 | 5.0 | GAS |
| 1998 | Chevrolet | G2500 Van | V6 | 4.3 | GAS |
| 1996 – 1997 | Chevrolet | G30 Van | V8 | 5.7 | GAS |
| 1996 – 1997 | Chevrolet | G30 Van | V8 | 6.5 | DIESEL |
| 1997 | Chevrolet | G30 Van | V8 | 7.4 | GAS |
| 1996 – 1997 | Chevrolet | G30 Van Express | V8 | 7.4 | GAS |
| 1996 – 1997 | Chevrolet | G30 Van Express | V8 | 5.7 | GAS |
| 1996 – 1997 | Chevrolet | G30 Van Express | V8 | 6.5 | DIESEL |
| 1998 | Chevrolet | G3500 Van | V8 | 5.7 | GAS |
| 1998 | Chevrolet | G3500 Van | V8 | 7.4 | GAS |
| 1998 | Chevrolet | G3500 Van | V8 | 6.5 | DIESEL |
| 2003 – 2007 | Chevrolet | Kodiak C4500 | V8 | 6.6 | DIESEL |
| 2005 | Chevrolet | Kodiak C4500 | V8 | 8.1 | GAS |
| 2003 – 2007 | Chevrolet | Kodiak C5500 | V8 | 6.6 | DIESEL |
| 2005 | Chevrolet | Kodiak C5500 | V8 | 8.1 | GAS |
| 2003 – 2005 | Chevrolet | Kodiak C6500 | L6 | 7.8 | DIESEL |
| 2005 | Chevrolet | Kodiak C6500 | V8 | 8.1 | GAS |
| 2005 | Chevrolet | Kodiak C6500 | L6 | 7.2 | DIESEL |
| 2003 – 2007 | Chevrolet | Kodiak C7500 | L6 | 7.8 | DIESEL |
| 2005 | Chevrolet | Kodiak C7500 | L6 | 7.2 | DIESEL |
| 2005 | Chevrolet | Kodiak C8500 | Any | 0.0 | Any |
| 1998 – 2004 | Chevrolet | S10 Pickup | V6 | 4.3 | GAS |
| 1998 | GMC | G15/G1500 Van | V6 | 4.3 | GAS |
| 1998 | GMC | G15/G1500 Van | V8 | 5.7 | GAS |
| 1998 | GMC | G15/G1500 Van | V8 | 5.0 | GAS |
| 1998 | GMC | G15/G1500 Van | V6 | 4.3 | GAS |
| 1996 – 1997 | GMC | G15/G1500 Van Savana | V6 | 4.3 | GAS |
| 1996 – 1997 | GMC | G15/G1500 Van Savana | V8 | 5.7 | GAS |
| 1996 – 1997 | GMC | G15/G1500 Van Savana | V8 | 5.0 | GAS |
| 1996 – 1997 | GMC | G15/G1500 Van Savana | V6 | 4.3 | GAS |
| 1998 | GMC | G25/G2500 Van | V6 | 4.3 | GAS |
| 1998 | GMC |
