1997 -2002 CHEVROLET S10 2.2 New A/C COMPRESSOR 20446 AC Repair KIT 1137015, 1137023, 1137024

Description

ITEM DESCRIPTION

Item Number: AP20446Core Charge: $0.00Manufacturer: AirpartsDescription: OEM # 1137015, 1137023, 1137024

/ New AC Compressor

Shipping Weight: 15.0 lbs

2 Years Warranty

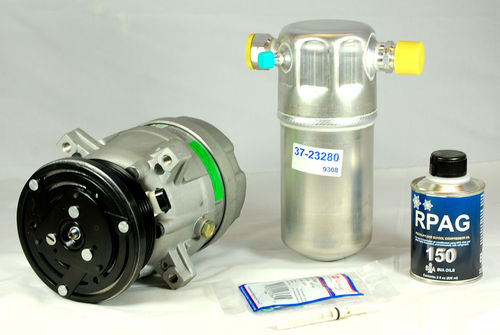

Included in this package is:

Brand new A/C compressor with clutch
Brand new receiver drier
Brand new Orifice valve
O-ring kit –
8-oz bottle of PAG- oil (Pre-charged inside Compressor)

New GM V7 Air Conditioning A/C Compressor Complete With 6 Groove Clutch Assembly For Chevy S10 Pickup, GMC Sonoma, And Isuzu Hombre 4 Cylinder 2.2 Engine.

APPLICATIONS

Application Notes

New GM V7 Air Conditioning Compressor Complete With 6 Groove Clutch Assembly Measuring 4.87″ Diameter, 1.15″ Gauge Line – 8mm Pin Coil @ 9 O’Clock

The GM V7 is a 7 cylinder variable displacement compressor.

General Motors V5 and V7 compressors have a control valve. A control valve measures refrigerant and adjusts the angle of the swash plate, to which the pistons are connected, and controls the stroke of the pistons. If high pressure is measured, the control valve adjusts to shorten the stroke of the pistons, so less pressure is produced. If, upon installation of a new compressor, there seems to be no ‘pumping’ from the compressor, it may be necessary to remove the control valve and blow off excess oil. The control valve may be sensing no pressure and presuming the system is empty of refrigerant.

The Accumulator or Filter Drier should always be replaced when the Air Conditioning System is opened.

Special Notes

ACDelco: 15-20313, 15-20446, 15-21221

CarQuest / NAPA: 254425, 274289

Delphi: CS0135

Denso: 471-9178

Four Seasons: 67291, 68291

General Motors: 1137015, 1137023, 1137024

Isuzu: 8-01137-015-0, 8-01137-024-0

Omega: 20-10857

Proliance: 2692, 2692N

Visteon: 000020, 010332

Years	Make	Model	Liter
1998 – 2000	Chevrolet	S10 Pickup	2.2
2000 – 2002	Chevrolet	S10 Pickup	2.2
2003	Chevrolet	S10 Pickup	2.2
1998 – 2000	GMC	Sonoma	2.2
2000 – 2002	GMC	Sonoma	2.2
2000 – 2002	GMC	Sonoma	2.2
2003	GMC	Sonoma	2.2
1998 – 2000	Isuzu	Hombre	2.2
1998 – 2000	Isuzu	Hombre	2.2

New A/C Condenser Replacement Perfect FIT
