Description
Item Number: AP20195Core Charge: $0.00
Manufacturer: AirpartsDescription: OEM #
| 1135282 |
| 1135435 |
| 89018865 |
| 89018898 |
/ New AC Compressor Replacement
Shipping Weight: 18.0 lbs
2 Years Warranty
Vehicle Application:
New GM V5 Air Conditioning A/C Compressor With 6 Groove Clutch Assembly For Buick Lesabre, Park Avenue, Riviera, Oldsmobile 98, Delta 88, LSS, Regency, And Ponitac Bonneville With V6 3.8 Engine.
New GM V5 Air Conditioning Compressor With 6 Groove Clutch Measuring 5.12″ Diameter, 1.15″ Gauge Line – 3 Mounting Ears – Missing 4 O’Clock Ear – Ears Not Threaded – 3/4 X 5/8 Hose Manifold – 8mm Pin Coil @ 2 O’Clock – No Switch Ports – 10mm Rear Holes
The GM V5 is a 5 piston variable displacement compressor.
General Motors V5 and V7 compressors have a control valve. A control valve measures refrigerant and adjusts the angle of the swash plate, to which the pistons are connected, and controls the stroke of the pistons. If high pressure is measured, the control valve adjusts to shorten the stroke of the pistons, so less pressure is produced. If, upon installation of a new compressor, there seems to be no ‘pumping’ from the compressor, it may be necessary to remove the control valve and blow off excess oil. The control valve may be sensing no pressure and presuming the system is empty of refrigerant.
ACDelco: 15-20195, 15-20453, 15-21663
CarQuest / NAPA: 251124
Delphi: CS0062, CS20009
Denso: 471-9144, 471-9185
Everco: A71124
Four Seasons: 57994, 58994, 57999
General Motors: 1135242, 1135272, 1135282, 1135423, 1135435, 89018799
Omega: 20-11158
Proliance: 2695, 2695N
Visteon: 000661, 010338

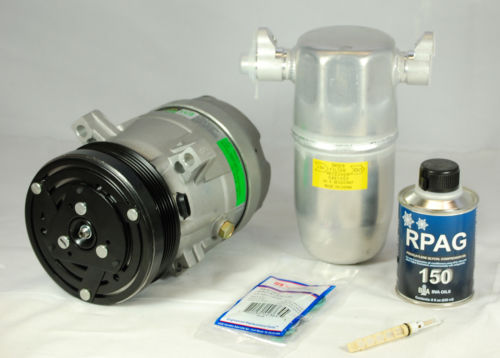

Included in this package is:
- Brand new A/C compressor with clutch
- Brand new accumulator/drier
- Brand new Orifice Tube
- O-rings
- 8-oz bottle of PAG oil
| Years | Make | Model | Engine Type | Liter | Fuel |
|---|---|---|---|---|---|
| 1999 | Buick | Lesabre | V6 | 3.8 | GAS |
| 1999 | Buick | Lesabre | V6 | 3.8 | GAS |
| 1996 – 1998 | Buick | Lesabre Custom | V6 | 3.8 | GAS |
| 2000 – 2005 | Buick | Lesabre Custom | V6 | 3.8 | GAS |
| 1996 – 1998 | Buick | Lesabre Limited | V6 | 3.8 | GAS |
| 2000 – 2005 | Buick | Lesabre Limited | V6 | 3.8 | GAS |
| 1996 – 2005 | Buick | Park Avenue | V6 | 3.8 | GAS |
| 1996 – 1998 | Buick | Park Avenue Ultra | V6 | 3.8 | GAS |
| 2001 – 2005 | Buick | Park Avenue Ultra | V6 | 3.8 | GAS |
| 1996 – 1999 | Buick | Riviera | V6 | 3.8 | GAS |
| 1996 | Oldsmobile | 98 Regency Elite | V6 | 3.8 | GAS |
| 1999 | Oldsmobile | Delta 88 | V6 | 3.8 | GAS |
| 1999 | Oldsmobile | Delta 88 | V6 | 3.8 | GAS |
| 1996 – 1998 | Oldsmobile | Delta 88 Royale | V6 | 3.8 | GAS |
| 1996 – 1998 | Oldsmobile | Delta 88 Royale LS | V6 | 3.8 | GAS |
| 1996 – 1999 | Oldsmobile | LSS | V6 | 3.8 | GAS |
| 1997 – 1998 | Oldsmobile | Regency | V6 | 3.8 | GAS |
| 1997 – 1998 | Oldsmobile | Regency | V6 | 3.8 | GAS |
| 1999 – 2003 | Pontiac | Bonneville | V6 | 3.8 | GAS |
| 1999 – 2003 | Pontiac | Bonneville | V6 | 3.8 | GAS |
| 1996 – 1998 | Pontiac | Bonneville SE | V6 | 3.8 | GAS |
| 1996 – 1998 | Pontiac | Bonneville SE | V6 | 3.8 | GAS |
| 2004 – 2005 | Pontiac | Bonneville SE | V6 | 3.8 | GAS |
| 2004 – 2005 | Pontiac | Bonneville SE | V6 | 3.8 | GAS |
| 2004 – 2005 | Pontiac | Bonneville SLE | V6 | 3.8 | GAS |
| 2004 – 2005 | Pontiac | Bonneville SLE | V6 | 3.8 | GAS |
| 1996 – 1998 | Pontiac | Bonneville SSE | V6 | 3.8 | GAS |
| 1996 – 1998 | Pontiac | Bonneville SSE | V6 | 3.8 | GAS |
