ITEM DESCRIPTION
Item Number: AP4318Core Charge: $0.00Manufacturer: SandenDescription: OEM # Sanden: 4318
/ New AC Compressor Replacement
Shipping Weight: 17.0 lbs
2 Years Warranty

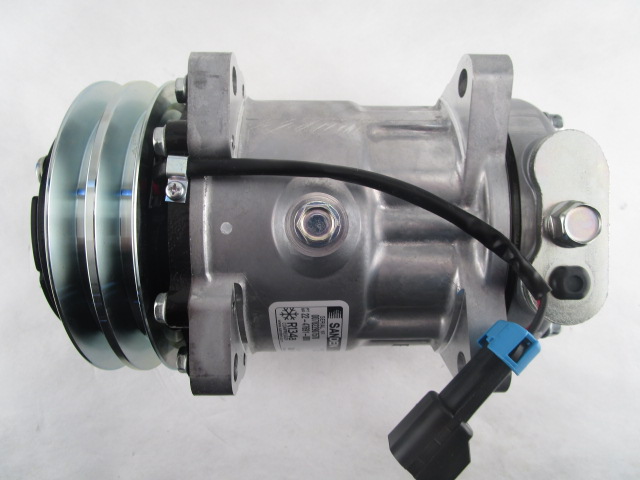

New Air Conditioning Compressor – Sanden SD7H15HD – 8 Mounting Ears –
Double Groove Clutch Assembly 5.2″ Pulley Diameter, Gauge Line
(Measured From Front Of Ear To Middle Of Groove) A = 1.0″ B = 1.6″ UK
O-Ring Rear Head – Single Wire Weatherpack Connector
This compressor is used in the York / CCI conversion kits. With the brackets
and fittings, the kit replaces the old upright 209/210 pump.
APPLICATIONS
4340, 4316, 4317, 4318, 4340, 4349, 8087, 102740, 198087, 5299, 300-4665, 330-4001, 1401402, 20-04318, 4318, 03-3404, 50-5275, 124668, PTAC5299, 10363901, 5513027, 6513027, 7513027, 4318SAN, 1410060, 2004318, CO2006CAB, C2398
Description: SANDEN T/CCI COMPRESSOR SD7H15 VPAD 132mm 2A 12V 3EYE UK
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2” Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: None-Check label instructions
Fitting Port Position: Top
Fitting Style: Pad
Head Type: UK
Wire Type: 2 Wire Female Packard #15300002 W/ Jumper #4315-0400
Model: SD7H15HD
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Mount Type: Ear 8 Long
Ear ID: 83.3
Refrigerant: R134A
Displacement: 155.00
Oil Qty (cc): 0
Cylinder Head: UK
Port Angle: V
Port Clocking: 12:00
Head Port Style: O-Ring
Gauge Line to First Groove: 23.80
Gauge Line to Middle Groove: 0.00
Gauge Line to End Groove: 39.55
New A/C Compressor 100% Perfect Fit
