New A/C Block Type Expansion Valve International (Navistar) 2501794C1

Item Number: AP10200Core Charge: $0.00Manufacturer: AirpartsDescription: OEM # 2501794C1

/ New AC Expansion Valve

Shipping Weight: 1.0 lbs

 1 Year Warranty

BRAND NEW Block Type Expansion Valve International (Navistar)



2003 2000, 5000i, w/sleeper w/block type w/flange fittings, OEM 1699955-C1



9000 – 9900i, ix, EAGLE – 2008 2001, All, Block Type 2 ton Rating, OEM 2501794-C92



2003 2000, All, w/sleeper w/block type w/flange fittings, OEM 2501794-C92,1699955-C2



12-0804A Expansion Valve Kit – Replaces old style valves on 9000 series (5/1/97-1/5/99) and 9800 series (7/1/97-2/20/99). This valve has been improved for optimum performance. Consult TSB 99-16-02 (7/99). NOTE: If the vehicle is not equipped with APADS, the relay should be replaced with Part #11-0852.



TAC# 12-0804A

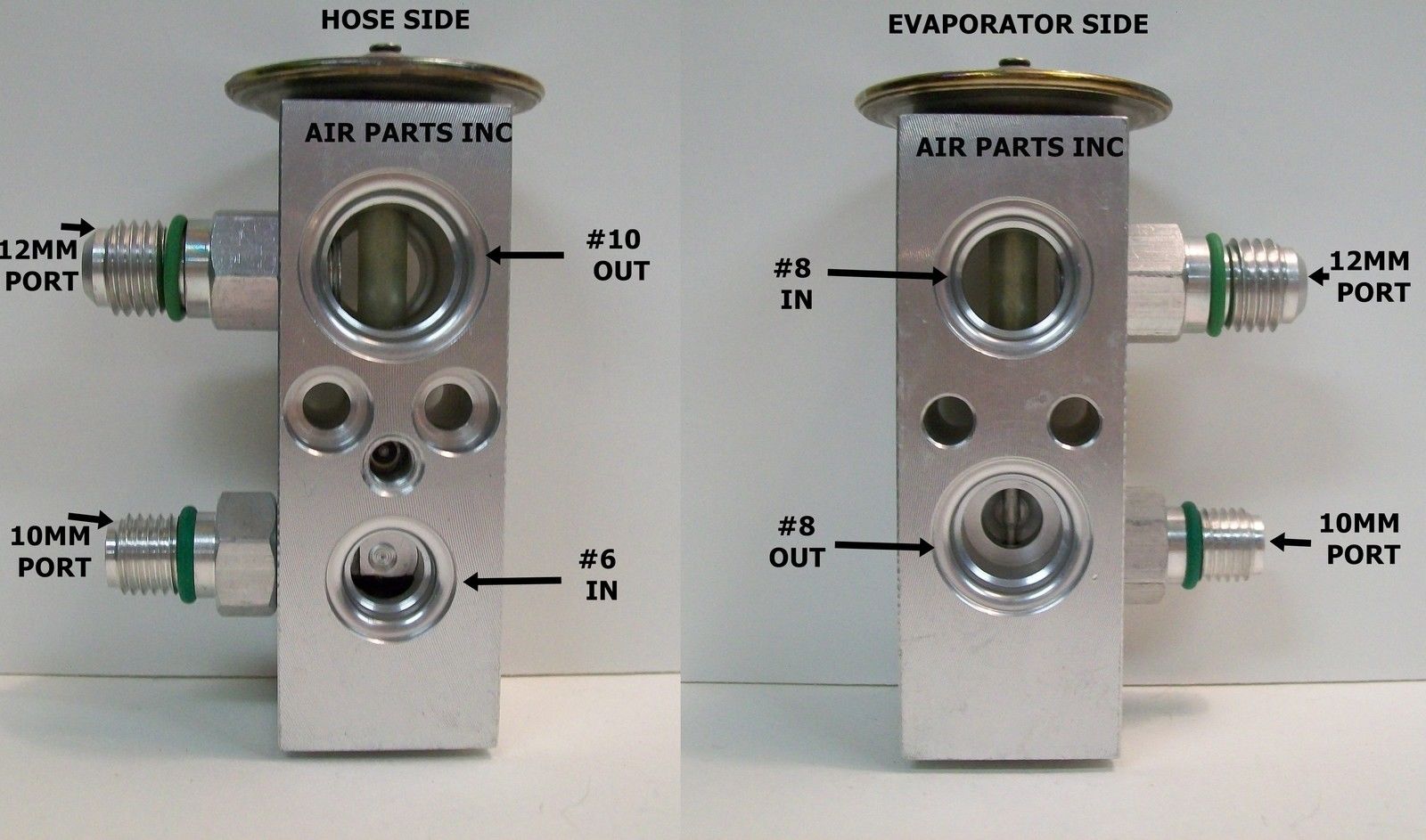

Hose Side:



In ……. #6 Flange



Out ……. #10 Flange



Evaporator Suction Side:



In …… #8 Flange



Out …… #8 Flange



Rating: 2 ton, Stud Mount, w/Ports M10, M12, oe# 540254
