Description
Item Number: AP4498Core Charge: $0.00Manufacturer: Sanden OEMDescription: OEM # Sanden U4498, U4813, 178-9570
/ New AC Compressor
Shipping Weight: 21.0 lbs
2 Years Warranty
NEW compressor SD7H15SHD.
Vehicle Application:
| CylinderHead | KCA |
| Volts | 12 |
| Grooves | 8 |
| PortOrientation | Horizontal |
| MountType | Direct |
| CompressorType | SD7H15SHD |
| Gauge | 49 |
| Refrigerant | R134A |
| Viscosity | 40-61 Cst at 40ºC |
| PulleyRidgeDiam. | 132 |
| Ports | 3/4″x7/8″ |
| Oil type | PAG46 OR EQUIV |
| Oil Qty (Cm3) | 150 |

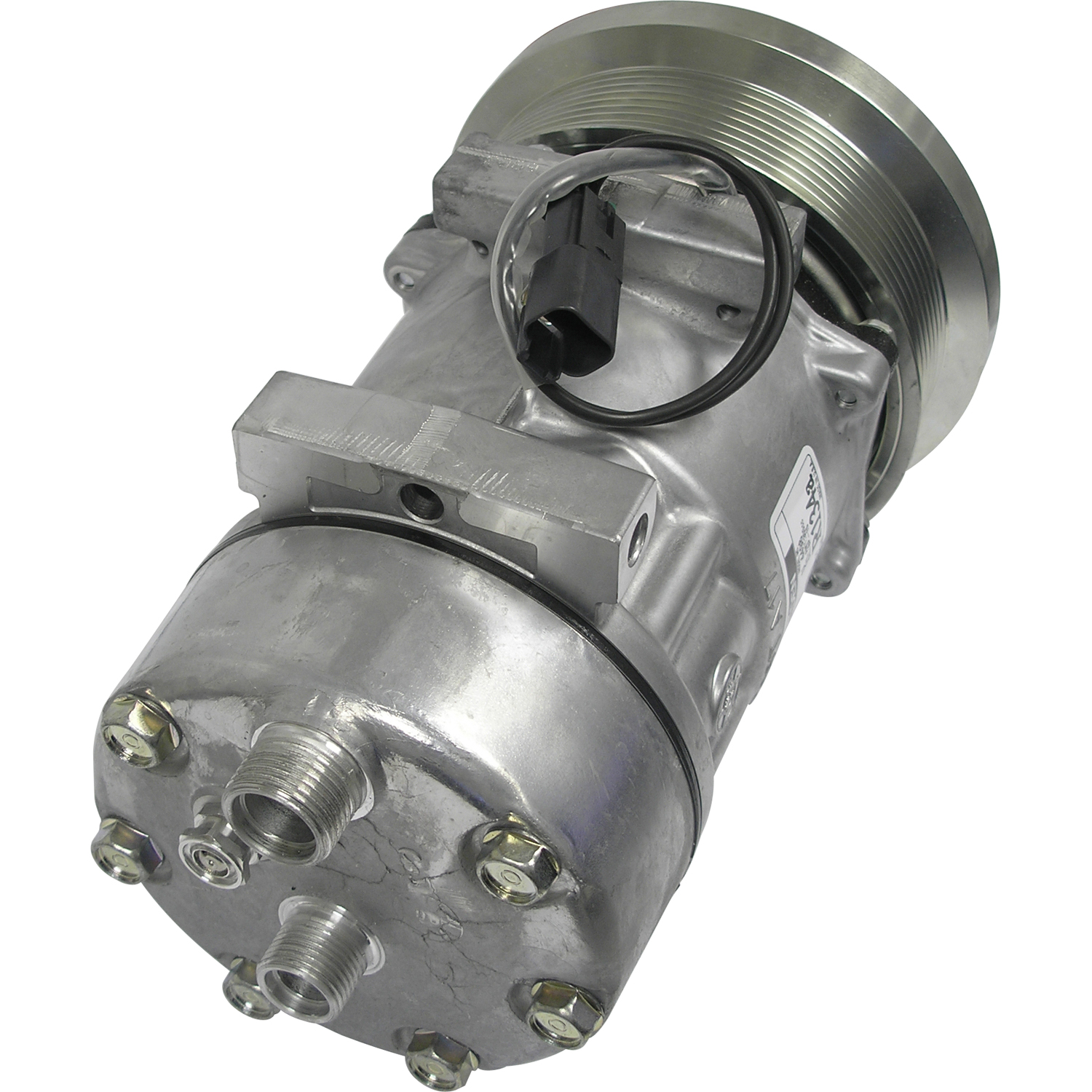

New SD7H15SHD Air Conditioning A/C Compressor Complete With 8 Groove Clutch Assembly For Caterpillar.
Sanden SD7H15SHD direct mount compressor. 8 groove clutch assembly, 5.25″ pulley diameter.
12 volt coil. KCA rear head, 10 & 8 o-ring hose fittings.
Caterpillar 178-9570
Compressor Works 618783
Four Seasons 58783
Sanden 4498, 4813, 4806
Part Specifications:
| Clutch Included | Yes |
| Clutch Pulley Diameter | 133 |
| Coil Voltage | 12 |
| Compressor Type | SD7H15 |
| Cylinder Head Type | KCA |
| Gaugeline End | 61.5 |
| Gaugeline Middle | 49 |
| Mount ID | T92 B87 |
| Mount Type | DIRECT ADM/LDM |
| Port Angle | H |
| Pulley Groove Quantity | 8 |
| Rotor Groove | PV8 |
| Terminal Connector | 2 WIRE CAT, PT-4073 |
| Thread Size | 3/4X7/8 |
ALL Agco MT700 Challenger
ALL Agco MT735 Challenger
ALL Agco MT745 Challenger
ALL Agco MT755 Challenger
ALL Agco MT765 Challenger
ALL Agco MT800 Challenger
ALL Agco MT835 Challenger
ALL Agco MT845 Challenger
ALL Agco MT855 Challenger
ALL Agco MT865 Challenger
ALL Agco MT875 Challenger
ALL Agco MT900 Challenger
ALL Agco MT955 Challenger
ALL Agco MT965 Challenger
ALL Agco MT975 Challenger
ALL Agco MT975 Challenger
