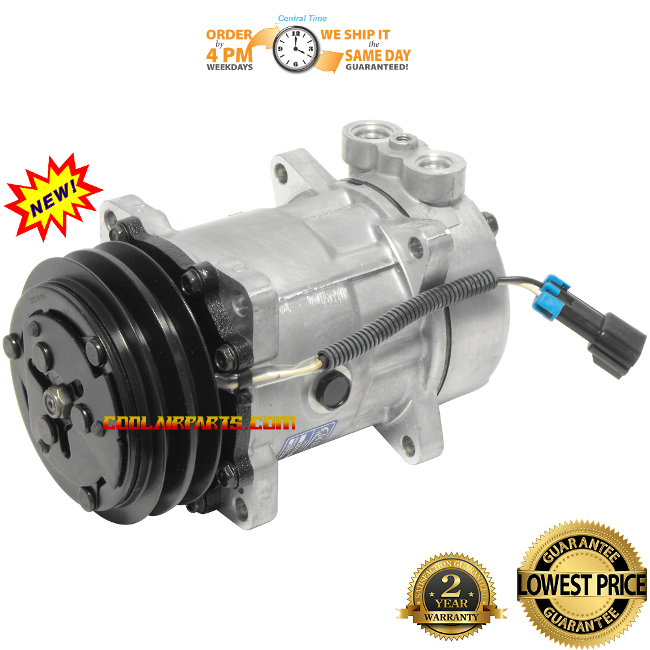

S696001-231 Kenworth K100 T2000 AC Compressor Sanden 4696 4041 4426 2602742C91 4426SAN 4696E F691000 F696001321 F696002231 F696001231

Description

Item Number: AP4696Core Charge: $0.00Manufacturer: AIRPARTSDescription: OEM # S696001-2314041, 4383, 4426, 4696, 1cc4696F696002231

/ New AC Compressor Replacement

Shipping Weight: 18.0 lbs

 2 Years Warranty

Sanden SD7H15 Style Double Groove Clutch 5.0″ Diameter, .95″ Gauge Line (A), 1.55″ (B) – 8 Mounting Ears – “GQ” Rear Head – 12 Volt Coil

Fits some Freightliner Kenworth and Peterbilt models.

 Kenworth Truck K100, T2000, T400, T450, T600, T700, T800, W900B

SD7H15 / SD7H15HD (R134a)



All, w/2 gr 125mm, 3406E,M11,N14,C10/C12, S60 (4041, 4426, 4696), OEM# F69-1000



All, w/2 gr 125mm, 4.9″ Dia. 2 wire (4041, 4426, 4696), OEM# F69-1000



All, w/2 gr 125mm 4.9″ 2 wire (4426); (4696), OEM# F69-6002-231



Peterbilt All, w/2 gr 125mm, 4.9″ Dia., 2 wire (4426, 4696), OEM# F69-1000, F69-6002-231



TAC# 03-1001C



Manufacturer #: 4696



Sanden Compressor-2 Groove



OEM F69-1000



12 Volts



Other OE Sanden #: 194696



Additional OE Sanden #: 4426



Additional OE Sanden #: 4041



Clutch Diameter: 125mm



Belt Type: Two 1/2” Belts



Comp. Displacement (ci): 9.5 cu.in.



Factory Oil Charge: 300cc Oil



Fitting Port Position: Lateral



Fitting Style: O-ring Pad @ 90 deg



Head Type: GQ



Wire Type: 2 Wire Female Packard #15300002



Model: SD7H15HD



Mounting Type: Ear 8 Long



Oil Type: PAG100



Refrigerant Type: R134a



Rotation: CW



Shaft Type: Long Key Shaft
