Description
Item Number: AP4860Core Charge: $0.00Manufacturer: AirpartsDescription: OEM # 68159
/ New AC Compressor Replacement
Shipping Weight: 18.0 lbs
2 Years Warranty
Compressor Specs:

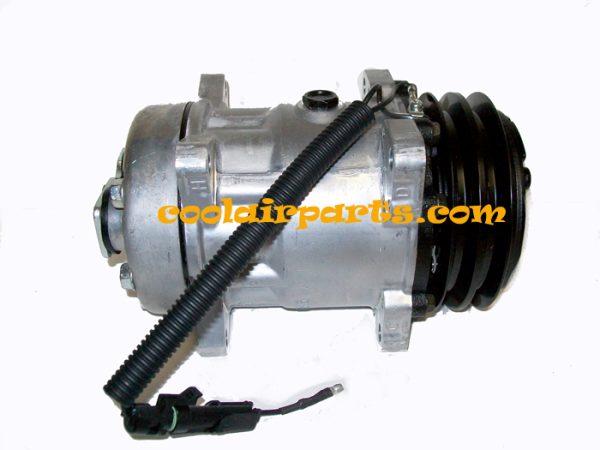

Description: SANDEN COMPRESSOR FLX7 4860 W/PAG OIL EAR MT 125mm 2A 12V
Compressor Family: SD7H15
Style: HD
Rotor Size: 125
Rotor Groove: A2
Coil Voltage: 12
Mount Type: Ear 8 Long
Ear ID: 83.3
Refrigerant: R134A
Displacement: 155.00
Rotation Direction: CW
Oil Qty (cc): 200
Oil Type: PAG100
Fitting Port Position: Horizontal
Fitting Style: Rear Universal O-ring FLX-7 Pad
Cylinder Head: GV
Port Angle: H
Port Clocking: Rear
Head Port Style: O-Ring
Belt Type: Two 1/2” Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Gauge Line to First Groove: 23.80
Gauge Line to Middle Groove: 0.00
Gauge Line to End Groove: 39.55
Connector: 1 Wire Male Packard #12015791 W/ Diode
Shaft Type: Long Key Shaft
Diode Protection: w/diode
- 2 Groove Clutch
- 125mm diameter of pulley
- GV Rear head
- 12 Volt
-
The compressor comes charged with the correct amount and type of oil.
